ELEVATE 704T – Commercial Sliding Doors (Top Hung)

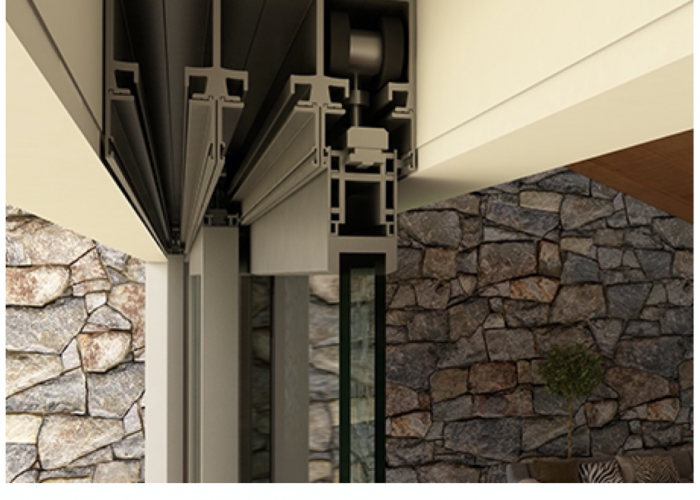

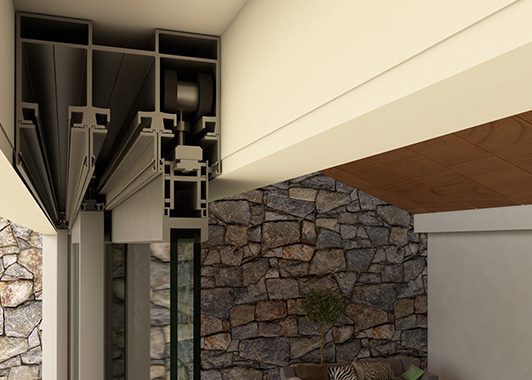

Looking for the ultimate in smooth threshold transitions? The SlideMASTER™ Top Hung sliding door creates a seamless transition from inside to out. Incorporating an a unique Top hat insert in the sill this door has been designed to comply with disability access regulations, to minimise the risk of trips and falls. The sill insert prevents heals, walking sticks and other objects from becoming stuck in the sill. This is an ideal choice for people looking for a seamless sill transition or building to disability or liveable housing standards.

  • Top hung door design allows doors to glide smoothly
  • AS1428.1 wheelchair compliant sill
  • Door head can be full recessed during installation for a stylish architectural appearance
  • Heavy duty adjustable top hung rollers ensure the door will operate at its optimum for years to come.
  • A wide range of configuration options
  • Excellent weather performance
  • Tall, wide panels will accept a wide range of glass options


Maximum Panel Height* 3300mm
Maximum Panel Width* 2500mm
Maximum Glass Thickness ≤ 28mm
SHGC Range 0.15 – 0.66
Uw Range 3 – 6.2
