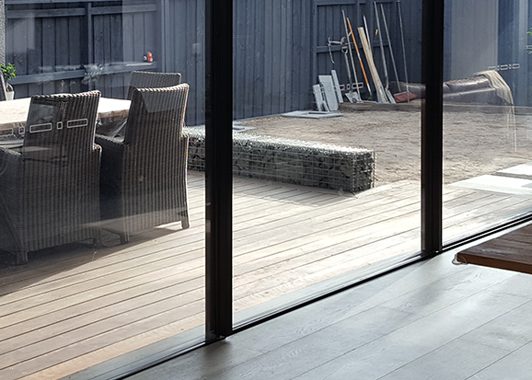

ELEVATE 704FBR – Commercial Sliding Doors (Flush Bottom Rolling)


The new Elevate Series 704FBR SlideMASTER Sliding Door is the very latest in European-inspired design from AWS. Tested and manufactured in Australia, this beautiful, energy-efficient door provides uninterrupted views, meets all relevant compliance demands, and is more than a match for our harsh climate.

The head, sill and jambs are fully concealed in the building envelope to deliver uninterrupted, clear, glass sightlines around the entire frame and outstanding energy efficiency.

  • Recessed head, sill and jambs allow clear glass sightlines.
  • Extra large sliding panels up to 3300mm high x 2500mm wide.
  • A range of configuration options including single and double sliding panels, bi-parting doors and corner sliding doors.
  • Compatible with Centor Screens
  • Heavy duty stainless steel rollers.
  • Compatible with high performance single glazed and double glazed, FrontGLAZE™ framing.


Maximum Panel Height* 3300mm
Maximum Panel Width* 2500mm
Maximum Glass Thickness ≤ 28mm
SHGC Range 0.24 – 0.74
Uw Range 2.2 – 4.2
