VANTAGE 517 – Residential Awning Windows

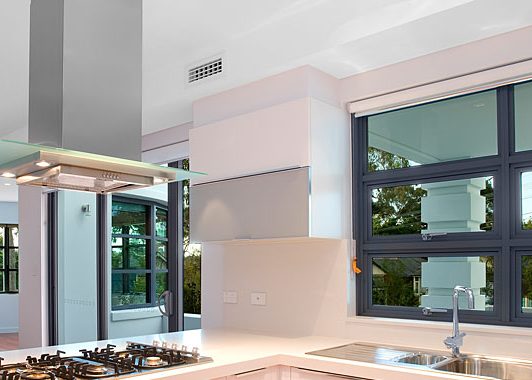

These popular stylish options are well suited to traditional or contemporary house designs with good reason. They offer excellent design flexibility. Awning windows push out effortlessly from the bottom and give ventilation with a measure of protection from unexpected passing showers.

  • The 102mm wide frame allows the fabrication of chain winder awning windows with the winder contained within the frame line.
  • This framing system has been designed to align with and couple to the Vantage Series 541 sliding door and the Series 548 French doors.
  • Awning type sashes are fitted with heavy duty adjustable chain winders.
  • Adjoining fixed sidelights and/or lowlights have matching splayed glazing beads.
  • Fixed sidelights and lowlights can be supplied with optional self-draining ball valve in the tubular sill that drains condensation water back to the outside while preventing blowbacks through the drainage hole.


Maximum Panel Height* Various
Maximum Panel Width* Various
Maximum Glass Thickness ≤ 20mm
SHGC Range 0.27 – 0.66
Uw Range 3.8 – 7.1
