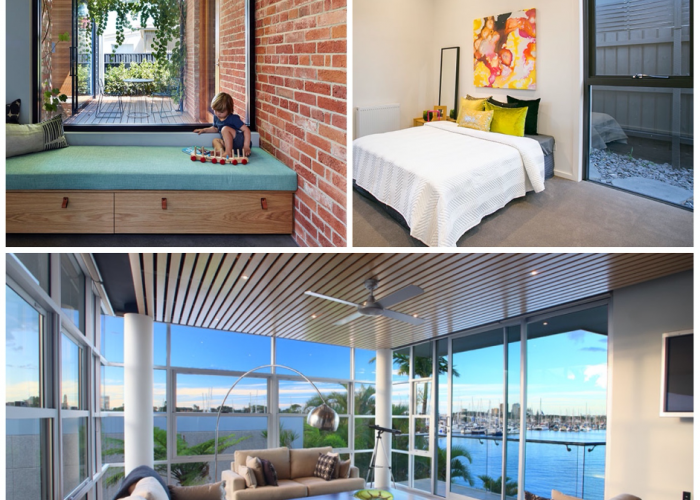

ELEVATE 400 – Commercial Frames Centre Glazed 102 x 44mm


  • Versatile commercial CentreGLAZE™ framing system ideal for commercial or residential applications.
  • True captive glazing wedge on one side. In elevated installations with bead on the inside at head this allows you to glaze and reglaze from inside the building, no need for scaffolding.
  • External wet top Silicone glazing also available.
  • Numerous custom designed extrusions to cater for specific applications. A range of sub-sills cover most installations including residential installations into cavity brick and brick veneer walls.
  • Sub-head and two piece sub-jambs.
  • Numerous door thresholds including weather resisting thresholds for external and internal swing doors.
  • Top hung and bottom rolling sliding door track systems.
  • Compatible with Series 50, 51 and 52 doors.


Maximum Panel Height* Various
Maximum Panel Width* Various
Maximum Glass Thickness ≤ 10.38mm
SHGC Range 0.25 – 0.61
Uw Range 6 – 4.1
